RRL Hose Pipe

RRL Hose Pipe

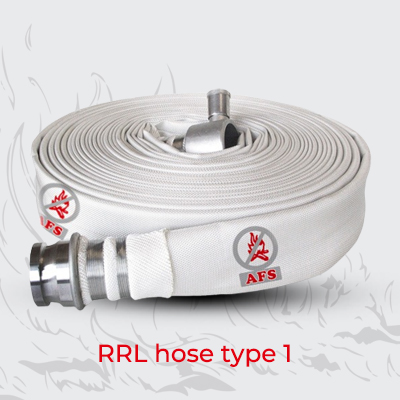

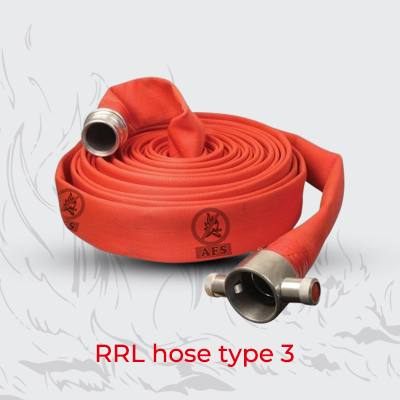

RRL hose type 1, RRL hose type 3

Diameter MM Brusting Presure Kgf/cm Proof Pressure Kgf/cm Approx Coil Dia (30m Length),cm
38 42 25 44-45
50 42 25 44-45
63/65 42 25 44-45
70/73 42 25 44-45

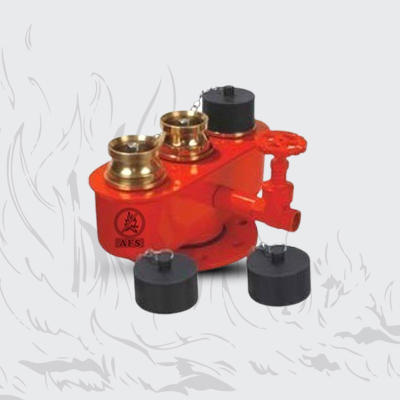

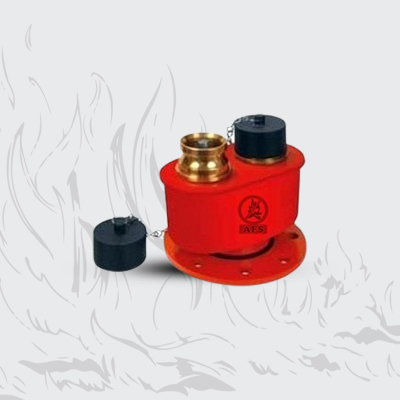

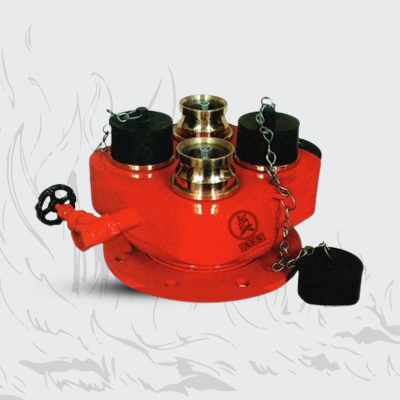

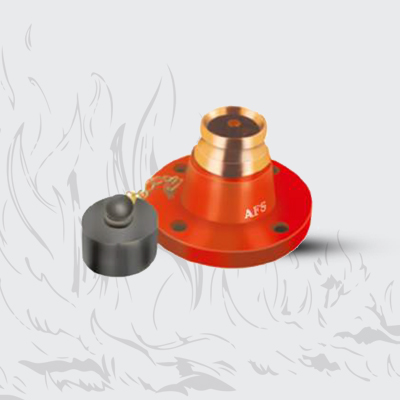

Inlet FBC / Breeching

Model : Single, 2 Way, 3 Way, 4 Way Inlet FBC Breeching

Size 63mm Dia
Material Gun Metal/S.S & Cast Iron Body
Testing Hydraulic Test : 21Kgf/cm2

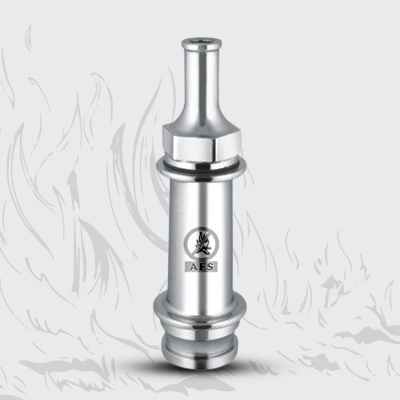

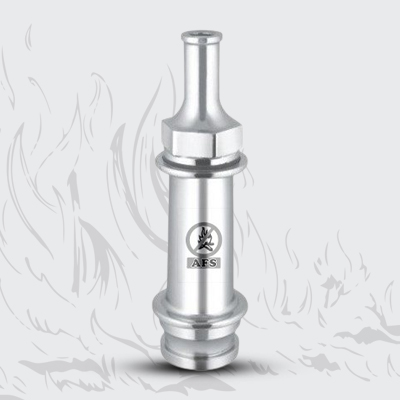

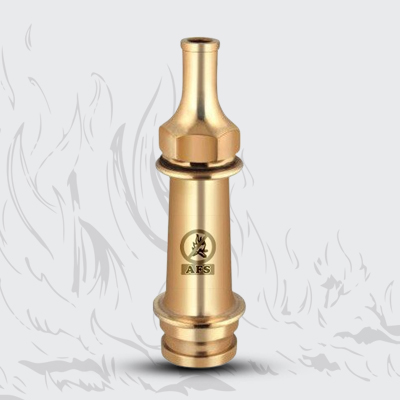

Short Branch Pipe With Nozzle

Model : Single, 2 Way, 3 Way, 4 Way Inlet FBC Breeching

Type of Material Stainless
Body, Assembly Stainless stee
Rubber Washer IS : 937 (TYPE-B)
Type of Material Gun Metal
Body, Assembly IS : 3444 LTB 2 IS : 318
Rubber Washer IS : 937 (TYPE-B)
Type of Material Aluminum
Body, Assembly IS 617
Rubber Washer IS : 937 (TYPE B)
Size of Branch Pipe 63 mm
Size of Nozzles 6mm, 12mm, 20mm and 25mm
Material Material: Gun Metal/Stainless/Aluminium Alloy
Confirming Specification IS903:1993
Hydraulic Test Tested at 21 Kgf/cm2
Working Pressure 7kgf/cm2
Finish Natural Polished
Hologram Sticker Stuck on Nozzle

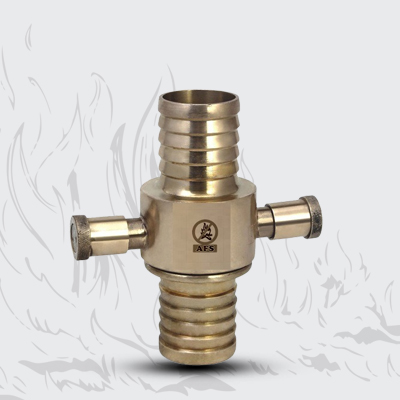

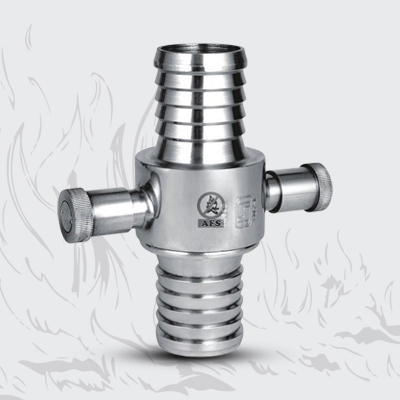

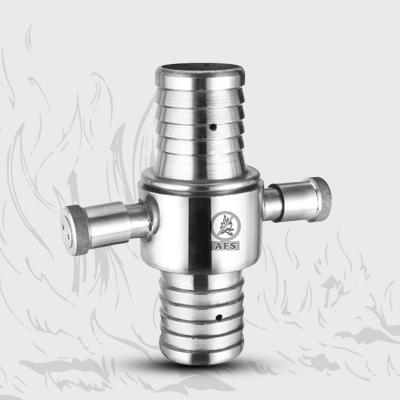

RRL Hose Pipe Male/female Type Coupling

Model : Single, 2 Way, 3 Way, 4 Way Inlet FBC Breeching

Material Stainless steel, Gun metal & Aluminum
Size 63mm dia
Performance Hydraulic Test 21 Kgf/cm2
Water Test Water Tightness 4 Kgf/cm2
Approval ISI Marked From Bureau of Indian Standards

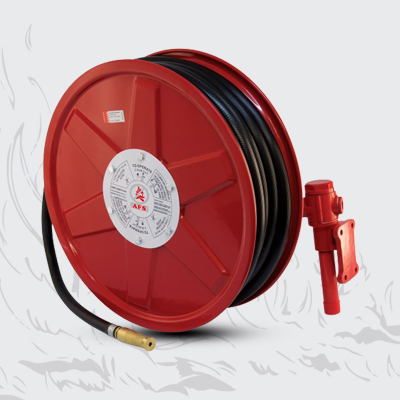

Swinging Type Wall Mounted Fire Hose Reel Drum Set

Approval ISI Marked from Bureau of Indian Standards

Specifications Type “A” Swinging (180 wall mounting)
Nozzle IS:8090-1976
Hose Hydraulic Thermoplast Hose
Reel Tubing IS:12585-1988
Manufacture As per IS:534/85
Hydrostatic Test Tested at 21Kgf/cm2
Range & Water flow rate Tested at 7 Kgf/cm2
Discharge 24 LPM
Range Jet length 6 Mtr minimum

Thermoplastic Hose Pipe

  • Lining: A Flexible Thermoplastic Lining, Smooth in bore
  • Reinforcement: A Natural or Synthetic Textile
  • Reinforcement: A Flexible Thermoplastic cover, which may have a smooth or fluted
  • Normal Bore (ID): 10.00mm to 50.00mm
  • Application: This Hose is used for Water Delivery & Fire Fighting purpose.

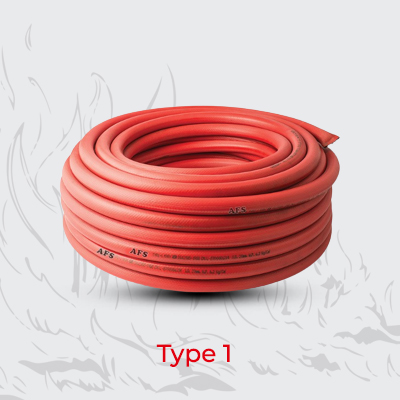

IS 12585-Type- 1
W.P. 6 KGF/CM2

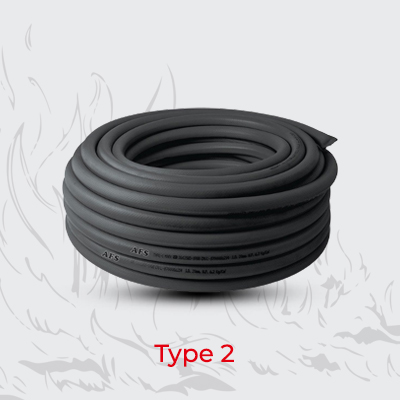

IS 12585-Type- 2
W.P. 1 KGF/CM2

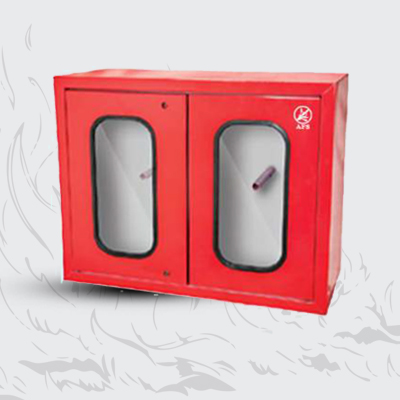

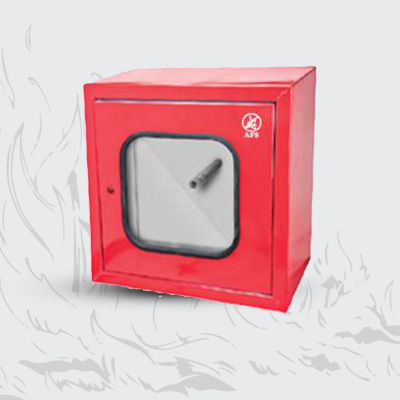

Hose Box

Fire Hose Boxes are widely used for keeping Fire Hoses of any length in it. It provides easy access to the Fire Hoses in case of a Fire Emergency.

  • Easy Access in case of Fire
  • Emergency
  • Keep Fire Hose Safe
  • Available in Double Door & Single Door
  • Available in different sizes
Material Mild Steel Sheet
Gauge of Sheet 14/16/18 Gauge

Sprinkler

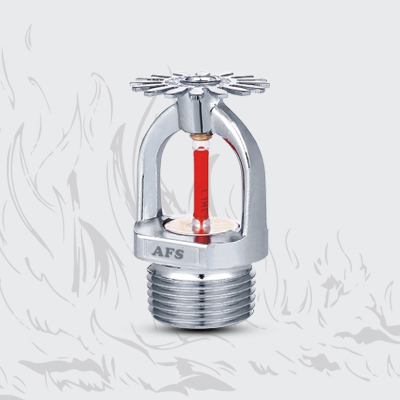

Conventional

Conventional sprinkler direct the jet also on the bearing structure of the ceiling and assure a roof cooling of beams and pillar. The deflector can be mounted on the one or the other side.

Description

  • 1/2” Chromed Export 680C
  • 1/2” LPC 680C
  • 1/2” LPC- FM 680C

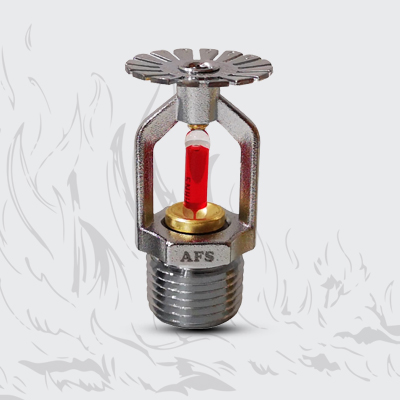

Pendent

The deflector cand be mounted only on the bottom side.

Description

  • 1/2” UL Listed 680C K80
  • 3/4” UL Listed 680C k112

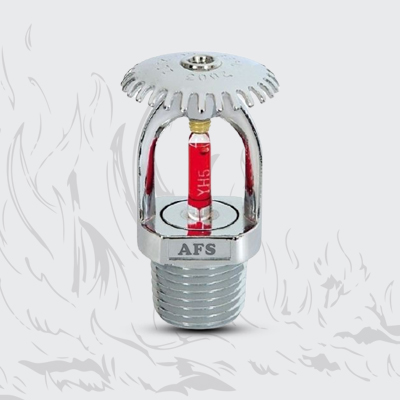

Upright

The deflector can be mounted only on the side up position.

Description

  • 1/2” UL Listed 680C K80
  • 3/4” UL Listed 680C k112

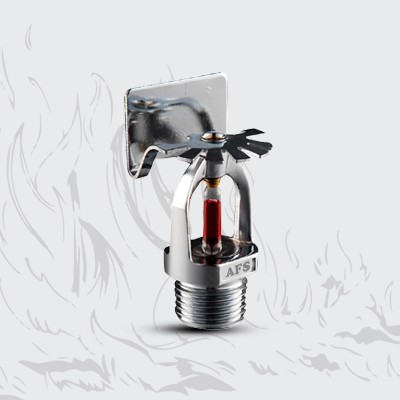

Sidewall

Sidewall sprinkler used near walls or bookcase.

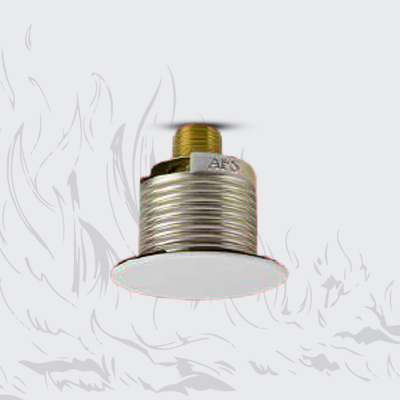

Concealed

Installed indoor of false ceiling are invisible for aesthetic reasons. The retailer is adjustable for imperfections of false ceiling and in case of fire come down allowing the flow rain.

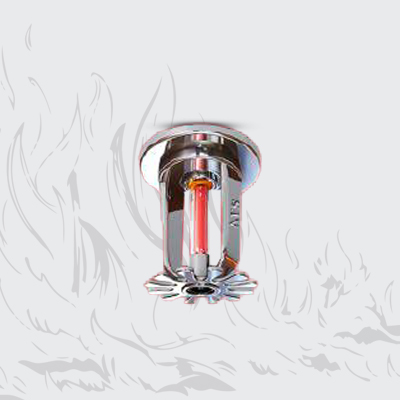

Automatic sprinkler

  • Temp. Rating: 155oF/68oC
  • Glass Bulb color: Red
  • Thread Size: NPT 1/2” or R 1/2”
  • Max Service Pressure: 175 psi
  • Glass Bulb Dia.(mm): 05

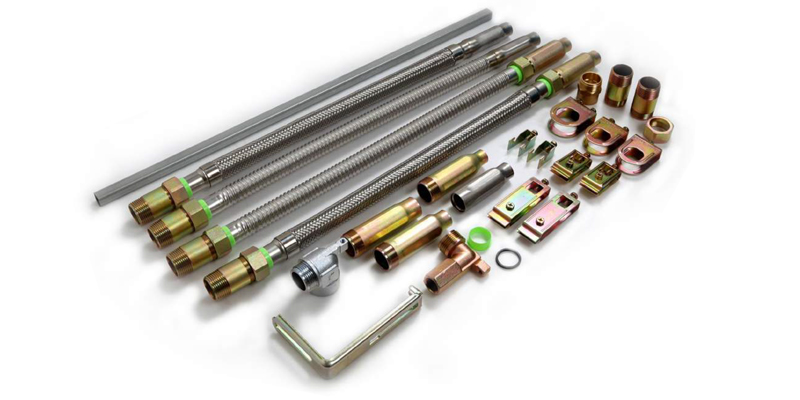

Flexible Sprinkler Hose Fitting
